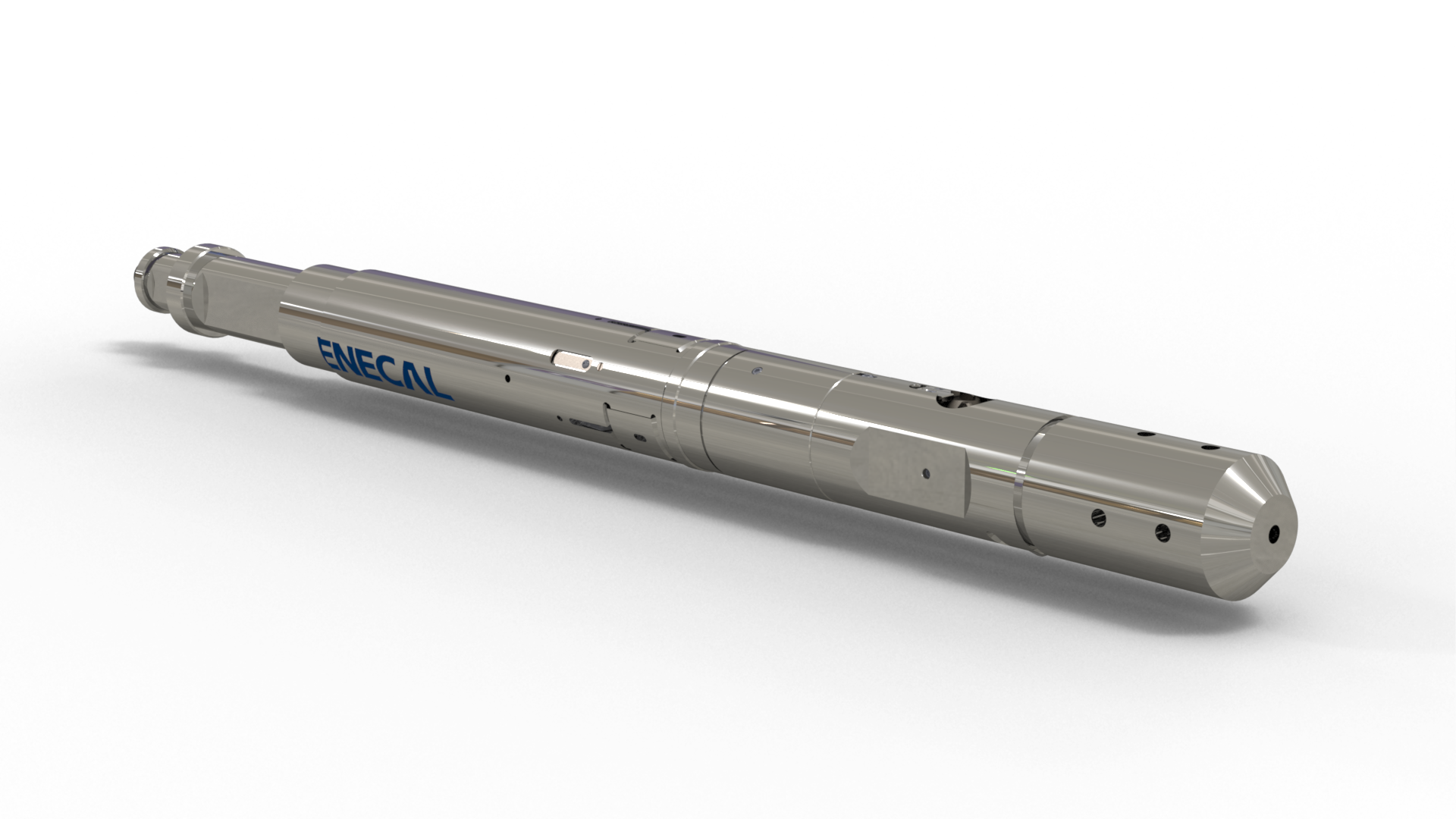

Model ECT Communication Tool
The Model ECT Communication Tool is an essential device used in the safety system to ensure effective hydraulic communication with TSV Series Tubing Retrievable Safety Valve. Its primary function is to facilitate the insertion of a hydraulically controlled WSV series of Wireline Retrievable Safety Valve, which is crucial for maintaining safety and operational efficiency in well operations.
This sophisticated tool comes equipped with safety features that are meticulously designed to position the tool precisely within the safety valve lock profile. It ensures proper orientation with the hydraulic chamber of the safety valve, which is critical for successful operation. The tool then punctures the hydraulic control chamber of the safety valve through downward jarring. This establishes a communication path with the internal diameter of the safety valve, providing the communication of existing control line for use by a new wireline retrievable safety valve.
Once this communication path is successfully established, the tool is engineered for easy retrieval. This is achieved through upward jarring, which reverses the initial jarring process and allows the tool to be safely and efficiently extracted from the well. The design and operation of this tool are integral to ensuring that subsurface safety valves function correctly, providing a reliable and secure mechanism for well control and safety management.
