Model HX & HXN Landing Nipples
The Model HX & HXN Landing Nipples are designed to provide precise and reliable landing points for subsurface flow control equipment. Featuring standardized internal locking profiles, these landing nipples are universally adaptable and compatible with standard weight tubing, facilitating ease of integration into various well completion setups.

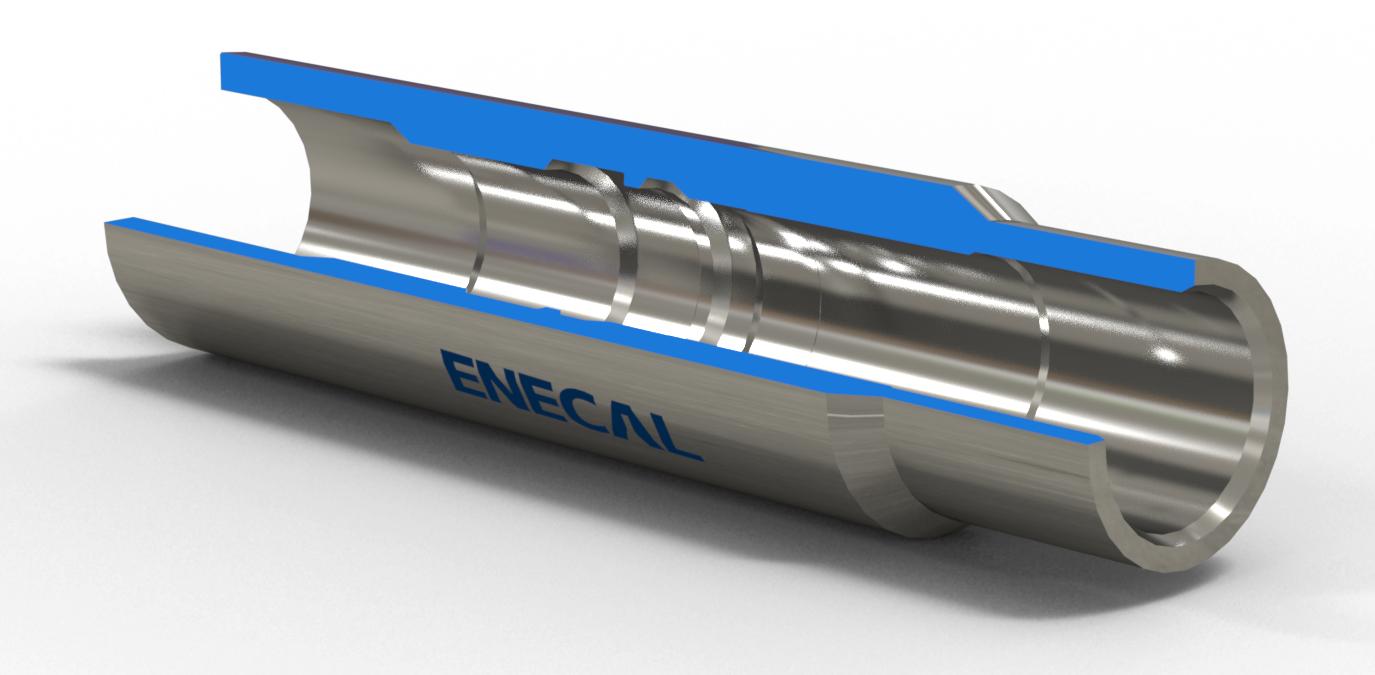

The HX model Landing Nipples allows for the strategic placement of multiple selective nipples along the tubing string, ensuring operators can set and secure flow control mechanisms at numerous positions, optimizing well operation efficiency and flexibility. The HX Landing Nipples work seamlessly with the model HX Lock Mandrel, allowing for smooth deployment and repositioning of equipment using slickline tools.

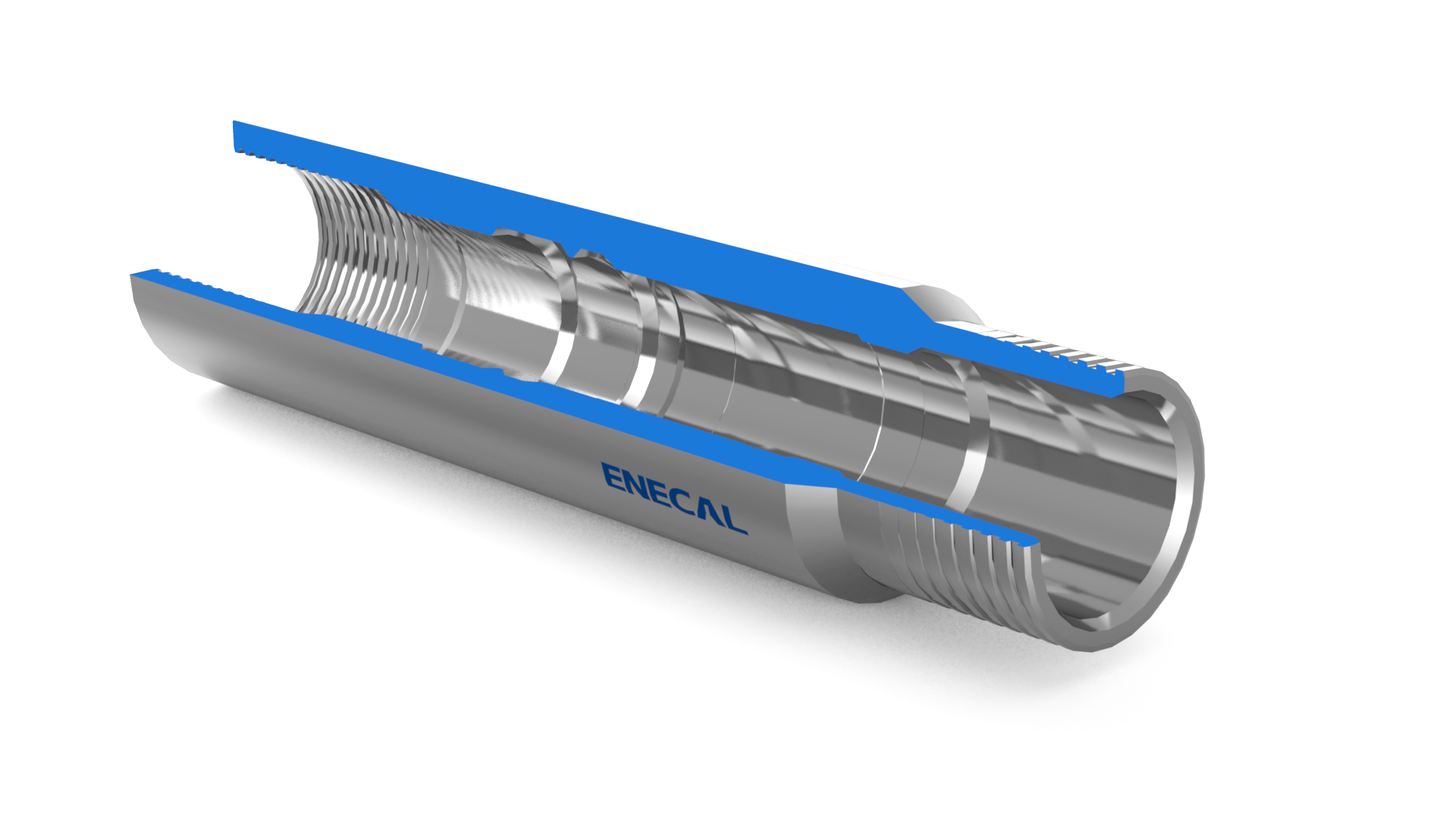

Fitted with a no-go shoulder, the model HXN Landing Nipples are ideally suited for the deepest locations within the tubing string. These landing nipples maintain the same packing bore ID as the HX model for a specific tubing size and weight.
Key Features & Benefits:
- Designed and manufactured to conform to API 14L specifications
- Functions in selective HX profile and bottom no-go HXN profile locking devices & blanking plugs
- Engineered to be compatible with standard weight tubing
- Large bore for tubing minimum restriction
- Solid, one-piece design
- Available with all API & Premium Thread tubing connections
