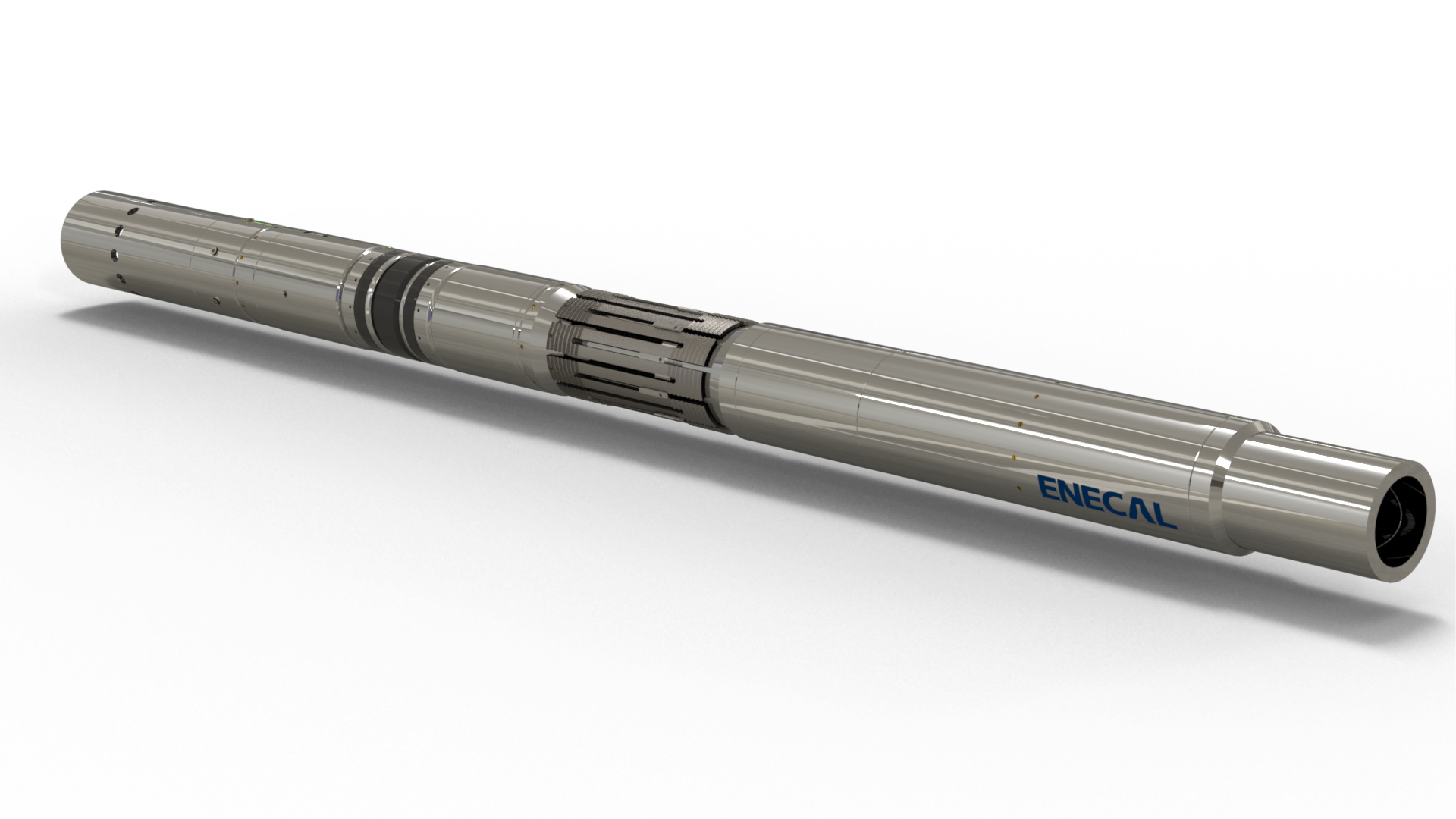

Model RHT Retrievable Hydraulic Set Sealbore Packer
The Model RHT Retrievable Hydraulic Set Sealbore Packer, a solution for well completion that features the advanced capabilities of a large seal-bore packer. This innovative packer is strategically installed within the well casing to effectively channel fluid flow from the lower casing to the upper tubing. Its versatile design allows it to carry various types of open hole packers, sand control screens, and serve as a critical pressure isolation point within the casing. Additionally, the RHT packer excels in weight-down gravel packing applications.
The RHT packer incorporates a three-piece multi-durometer packing element with a specially heat-treated metal backup support ring and a bi-directional barrel slip positioned below the sealing elements. The barrel slip features an expandable slotted cylinder, ensuring comprehensive contact with the casing. This design not only facilitates a slimmer running outer diameter but also enhances pressure retention capabilities while promoting a more balanced distribution of forces across the casing.
For deployment, the packer utilizes the Model RHT-HT Setting Tool, equipped with a latch-threaded head that includes torque finger slots, allowing seamless rotation through the mandrel down to the tailpipe. For retrieval, the RHT packer employs the Model RHT-PT Retrieving Tool. This tool is ingeniously designed with a primary drop ball pressure activation mechanism, offering a secondary option that utilizes tubing rotation to facilitate the release of the RHT packer in the downhole environment.
Engineered to withstand differential pressures of up to 10,000 psi (68.9 MPa) in select sizes, the RHT packer is built for robust performance in demanding environments. It also offers element options that are suitable for service temperatures reaching up to 400°F (204°C).
Key Features & Benefits:
- Retrievable Options : Offers flexibility with retrieval options, either by a straightforward pull or by cutting a pre-machined cut-zone in the packer mandrel
- Bi-directional, Case-Carburized Barrel External Slips : Ensures secure anchoring onto the wellbore for stable operation
- Multi-Duro Packing Elements : Provides exceptional isolation from pressure above and below the packer, enhancing sealing capabilities
- One-Piece Mandrel : Eliminates potential leak paths, ensuring integrity and reliability
- Field Adjustable Shear Release Value : For the straight pull model RHR, allows retrieval values to be easily adjusted in the field by adding or removing shear screws
- Multizone Production Suitability : Designed to be suitable for multizone production applications, providing versatility and adaptability in various operational environments
